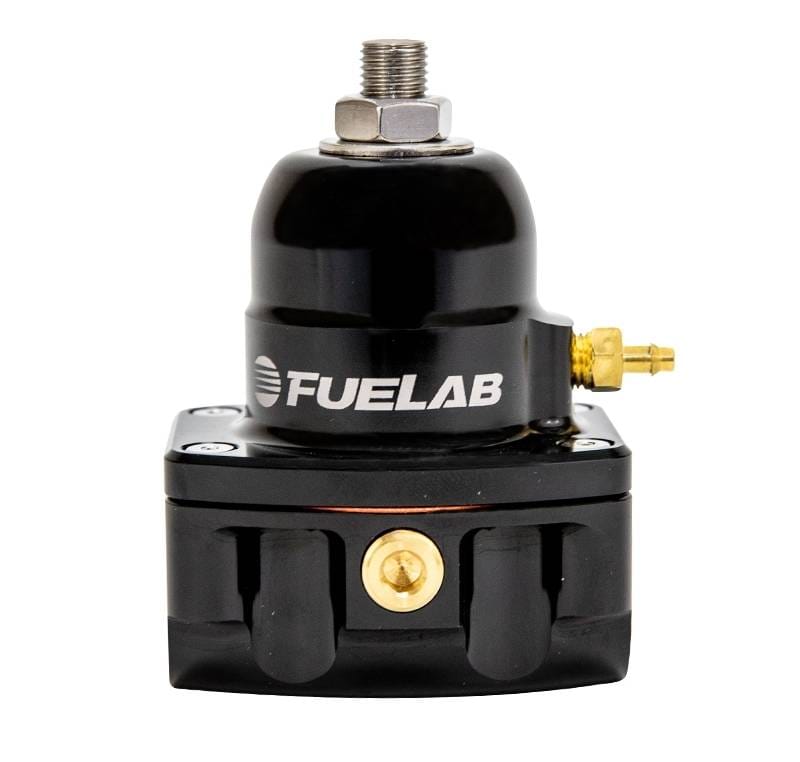

Ultralight 8AN Inlet Bypass Fuel Pressure Regulator with 6AN Return - 59503

8AN Inlets / Color / Standard Seat / Select Pressure

SEE AUTHORIZED DEALERS FOR CUSTOM ORDERING OPTIONS

Regulator Features

• Weighs 30% less than our 515/525 Series
• New design features that stand out
• Two -8AN inlet ports and one -6AN return port
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8” NPT gauge port with plug for external pressure gauge
• 1/16” NPT pressure reference port with barbed fitting
• Backed by a limited lifetime warranty

Pressure Range
L - 1-3psi
C - 4-12psi
T - 10-25psi
E - 25-90psi
G - 90-125psi
